Shock Mount Rack
SKB's 3RS Series 20" Static Shock Rack Transport cases are available in 8 sizes: 3U, 4U, 5U, 6U, 7U, 9U, 11U and 14U. These Shock Racks are lightweight, shockproof, watertight, dustproof, heat and chemical resistant, and perfect for protecting and transporting your sensitive electronic equipment. The inner rack chassis is built of high strength (but lightweight) aluminum alloy extrusions with 11 gauge hot rolled carbon steel rack rails to meet EIA-310 standards. Shock and vibration mitigation is accomplished with eight (8) elastomeric isolators rated for a payload range of 40 lbs to 150 lbs in a standard configuration (optional extended payload range of 160 lbs to 300 lbs can be accommodated as a special order option). The interior frame and shocks provide adequate sway for ambient air circulation and heat dissipation. 3RS Series cases are molded of LMDP Linear Medium Density Polyethylene plastic that meets or exceeds MIL-STD 810G standards. Measuring 20" deep from rail to rail with a standard 19" rack width per ANSI/EIA-310-C specification, 3RS Shock Racks also feature square-hole rack rails to accommodate either #10-32 US standard or 6mm International standard cage nuts which are supplied with the cases. The rugged roto-molded shell ensures industry leading strength and impact resistance. The standard commercial off the shelf (COTS) case comes with 2" deep front and rear lids to accommodate rack gear that is longer than 20". Molded-in stacking ribs and lugs are designed to stack with all SKB 3RR and 3RS cases, as well as competitive manufacturer cases, and feature black powder coated stainless steel hardware that is recessed for protection and 4 comfort grip spring loaded lift handles which allow for easy movement. An automatic pressure relief valve is another standard feature along with gasket sealed lids that include convenient lid hangers to store your lids when your equipment is in operation. Coupling straps are included for securing the racks together when stacked.
28” 3SKB Roto Shock Racks feature a depth of 29.5” from front to rear rail, with lid depths of 4.5” per lid to accommodate deeper servers. They also include a revolutionary new patented Adjustable Rail Conversion System (ARCS). This ARCS technology allows the user to adjust the rack width up to 0.5 inches on each side. Optional easy-mount adapter rails will convert the equipment mounting standard from 3/16" threaded to 7/32" through holes or square cage nut windows. The 7/32" through hole option and the 3/16" threaded are special order items. 28” 3SKB Roto Shock Racks will accommodate Dell and Compaq servers utilizing "Versa-rail" or "Rapid-rail" pull-out systems. All 3SKB Series Roto Shock Racks feature a compound hinge system that allows the lid to swing out and completely around to lie flat against the main body of the case. This also enables effortless removal/reinstallation of the lid with a simple lift motion. Both front and rear lids are designed to protrude into the base of the case approximately 1" with a unique double wall structure that makes them incredibly rigid where this intersection occurs, providing MIL-SPEC sealing characteristics with significantly fewer latches than most competitive cases. This revolutionary design allows for rapid deployment in an up-right configuration, even when stacked -- 3SKB Roto Shock Racks are the only shock racks in the marketplace today that will open front and back while stacked. The inner rack chassis is built of high strength / lightweight aluminum alloy and 11 gauge hot rolled carbon steel rack rails to DIA-310 standards, creating an H-shaped frame that provides maximum strength. Shock and vibration mitigation is accomplished with eight (8) elastomeric isolators rated for a payload range of 40 - 150 pounds in a standard configuration, and up to 300 pounds in a special order extended payload configuration allowing adequate sway space for ambient air circulation and heat dissipation. The rack rails come pre threaded for standard 10-32 hardware and mounting screws are included. Other standard features include an automatic ambient pressure relief valve and removable 4” casters.

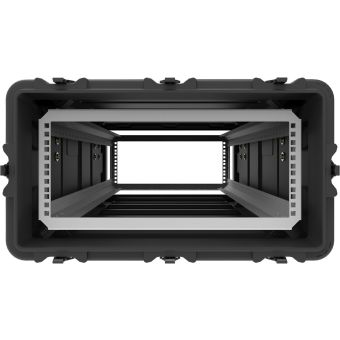

SKB's 30 inch 3RR Series Removable Shock Rack Transport cases are now available in 3 sizes, 3U, 4U, and 5U. These Shock Racks are lightweight, shockproof, watertight, dustproof, heat and chemical resistant, perfect for protecting and transporting your sensitive electronic equipment. Molded of LMDP Linear Medium Density Polyethylene plastic that meets or exceed MIL-STD 810G standards and includes 8 elastomeric shock absorbers which allows a standard payload range of 40 to 150 pounds. Optional extended payload range of 160 to 300 pounds can be accommodated as a special order option. These 3RR Series Removable Racks are 30" deep from rail to rail with a standard 19" rack width per ANSI/EIA-310-C specification and feature square-hole rack rails to accommodate either #10-32 US standard, or 6mm International standard cage nuts which are supplied with the cases. The rugged roto-molded shell ensures industry leading strength and impact resistance. The standard COTS (commercial off the shelf) case comes with a 2" deep front lid and a 5" deep rear lid to accommodate rack gear that is longer than 30", and edge casters to allow convenient case transport. Molded-in stacking ribs and lugs are designed to stack with competitive manufacturers cases. Black powder coated stainless steel hardware are recessed for protection is standard as well as 8 comfort grip spring loaded lift handles which allow for easy movement. An automatic pressure relief valve is another standard feature along with gasket sealed lids that include convenient lid hangers to store your lids when your equipment is in operation. Coupling straps are included for securing the racks together when stacked.
SKB's 3RR Series Removable Shock Rack Transport cases that are available in 7 sizes, 3U,4U, 5U, 7U, 9U, 11U and 14U.These new Shock Racks are lightweight, shockproof, watertight, dustproof, heat and chemical resistant, perfect for protecting and transporting your sensitive electronic equipment. Molded of LMDP Linear Medium Density Polyethylene plastic that meets or exceed MIL-STD 810G standards and includes 8 elastomeric shock absorbers which allows a standard payload range of 40 to 150 pounds. Optional extended payload range of 160 to 300 pounds can be accommodated as a special order option. The 3RR Series Removable Racks are 24 inch deep from rail to rail with a standard 19 inch rack width per ANSI/EIA-310-C specification and feature square-hole rack rails to accommodate either #10-32 US standard, or 6mm International standard cage nuts which are supplied with the cases. The rugged roto-molded shell ensures industry leading strength and impact resistance. The standard COTS (commercial off the shelf) case comes with a 2 inch deep front lid and a 5 inch deep rear lid to accommodate rack gear that is longer than 24 inches, and edge casters to allow convenient case transport. Molded-in stacking ribs and lugs are designed to stack with competitive manufacturers cases. Black powder coated stainless steel hardware are recessed for protection is standard as well as 8 comfort grip spring loaded lift handles which allow for easy movement. An automatic pressure relief valve is another standard feature along with gasket sealed lids that include convenient lid hangers to store your lids when your equipment is in operation. Coupling straps are included for securing the racks together when stacked.
